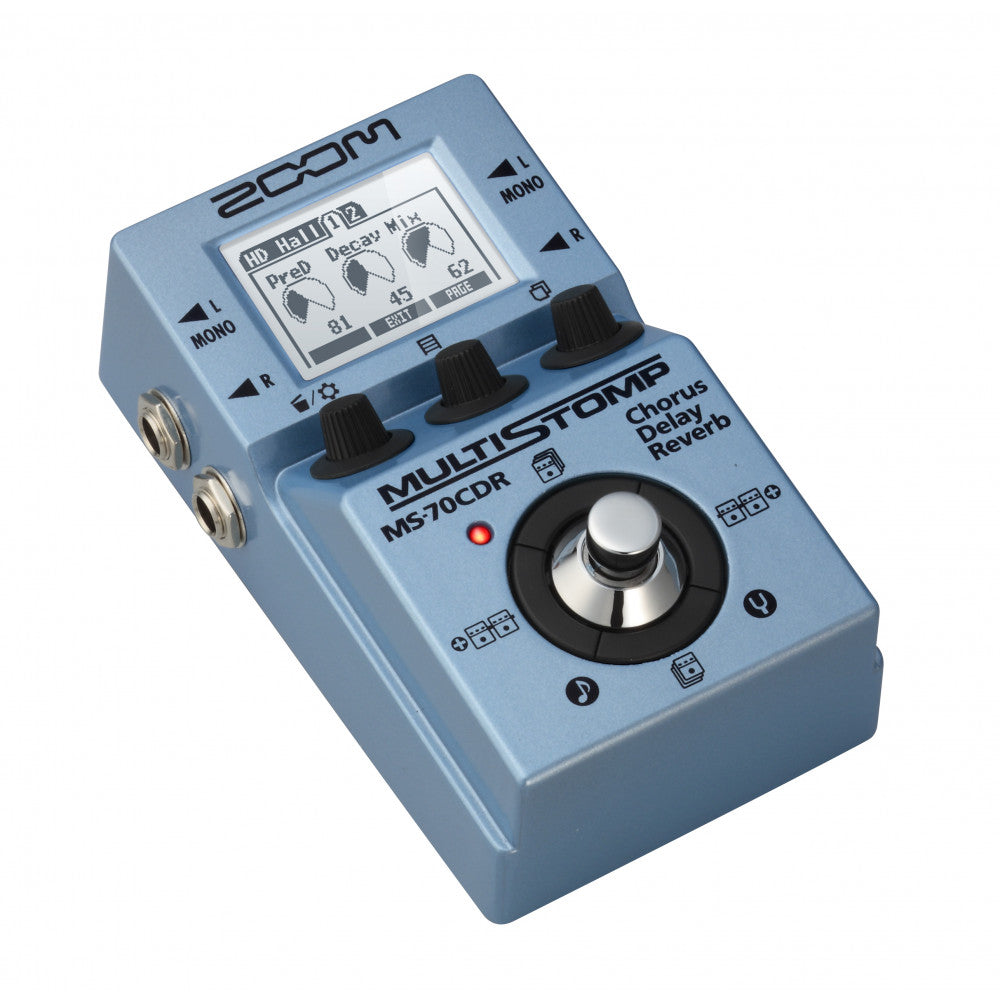

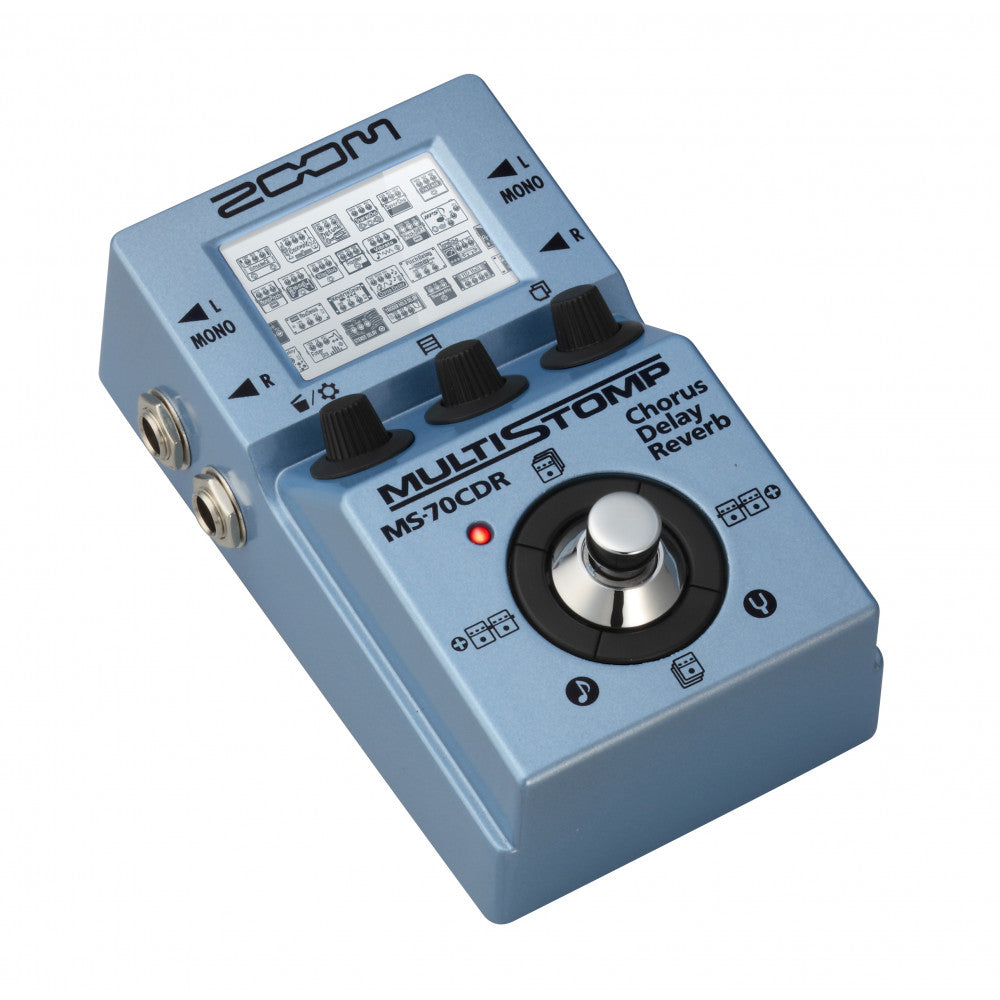

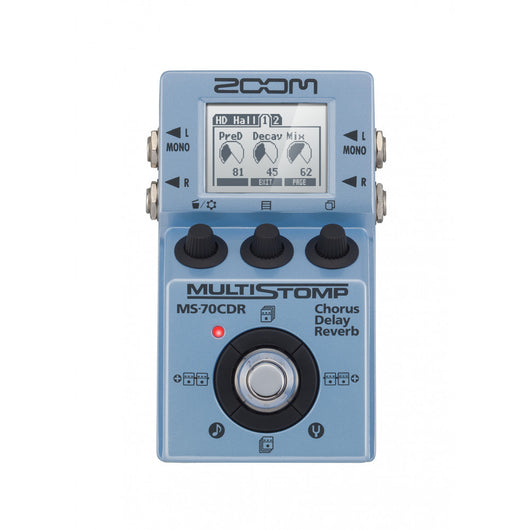

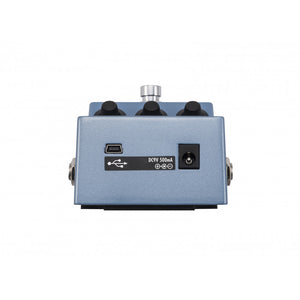

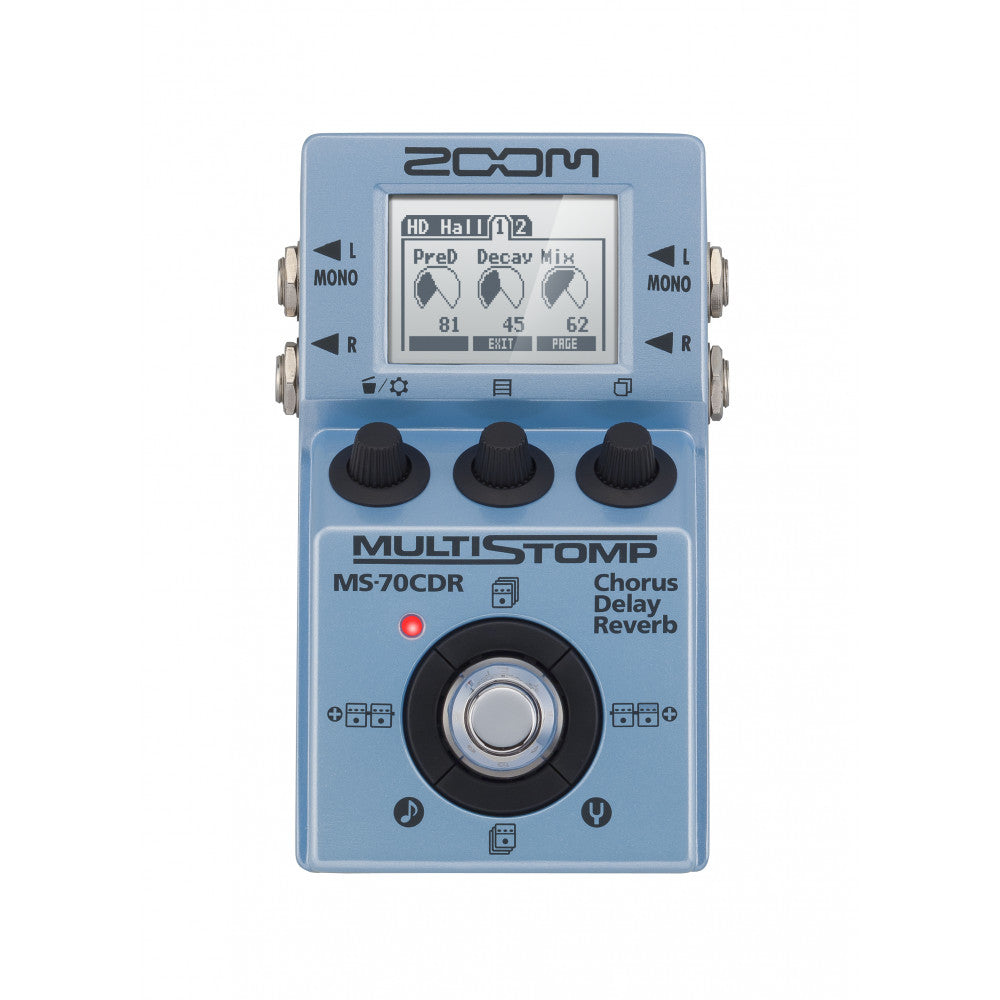

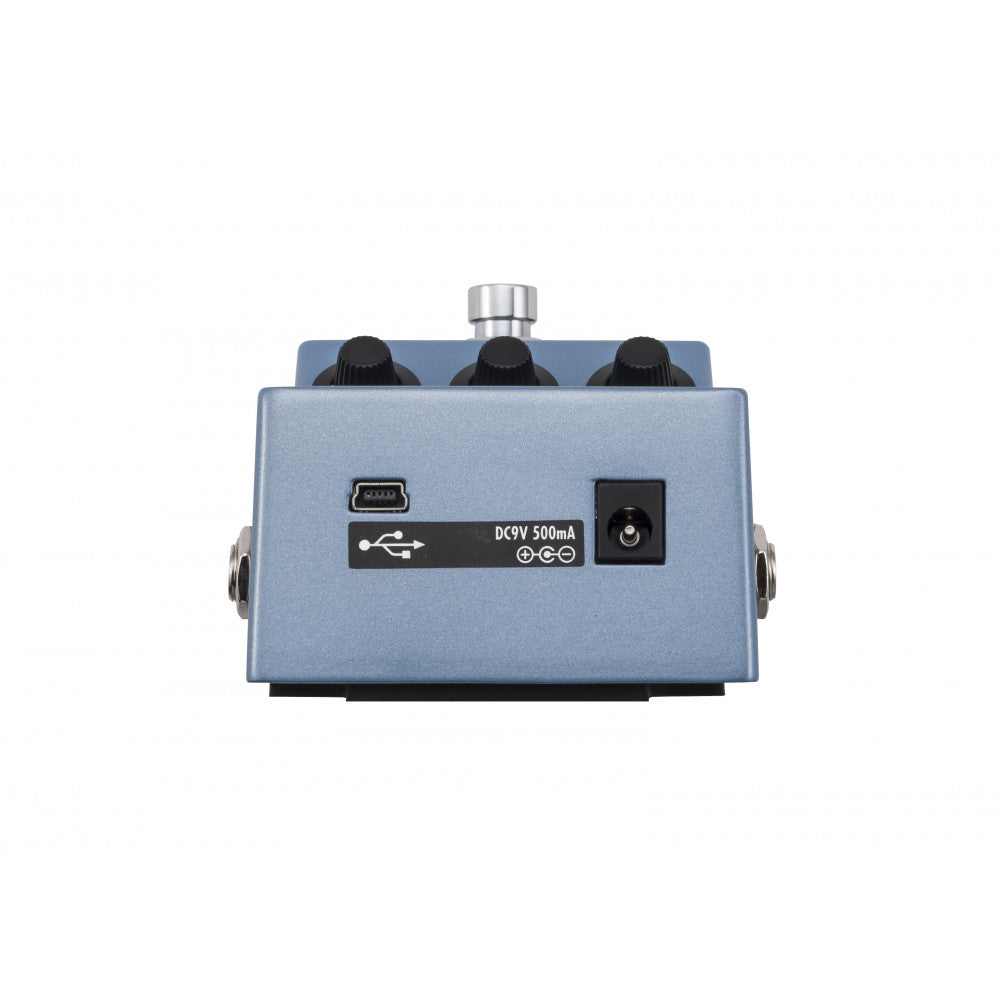

ZOOM MS-70CDR MULTI STOMP GUITAR CHORUS DELAY REVERB PEDAL
Zoom's MS-70CDR MultiStomp Chorus / Delay / Reverb pedal is the first of its kind. It provides the full power of a rack-mounted multi-effects device in a compact stompbox design. With its 86 custom guitar and bass effects, an easy-to-use interface, onboard chromatic tuner and versatile power options, you'll be astonished at how much this little box offers.
Specifications:
| Number of effects: |
86 |
|---|---|
| Maximum number of simultaneous effects: |
6 |
| Number of patch memories: |
50 |
| Sampling frequency: |
44.1 kHz |
| A/D conversion: |
24-bit, 128 x oversampling |
| D/A conversion: |
24-bit, 128 x oversampling |
| Signal processing: |
32-bit floating point and 32-bit fixed point |
| Frequency response: |
20Hz - 20 kHz +1 dB, -3 dB (into 10 kΩ load) |
| Display: |
LCD |
| Input: |
2 x 1/4" phone jack |
| Rated input level: |
-20 dBm* |
| Input impedance: |
1MΩ |
| Output: |
2 x 1/4" phone jack |
| Maximum output level: |
+5 dBm (output impedance load of 10 kΩ or more) |
| Battery type: |
AA size (LR6) battery x 2 |
| Continuous battery operation time: |
7 hours when using 2 AA alkaline batteries (5 when in stereo operation) |
| AC adapter (optional): |
DC 9V center-negative, 500 mA (Zoom AD-16) |
| USB: |
Firmware update, bus power |
| Dimensions: |
130.3 (D) x 77.5 (W) x 58.5 (H) mm |
| Weight: |
350g (without batteries) |
|
* Note: 0 dBm = 0.775 Vrms |
